Big-space cooling with liquid-cooled electronics

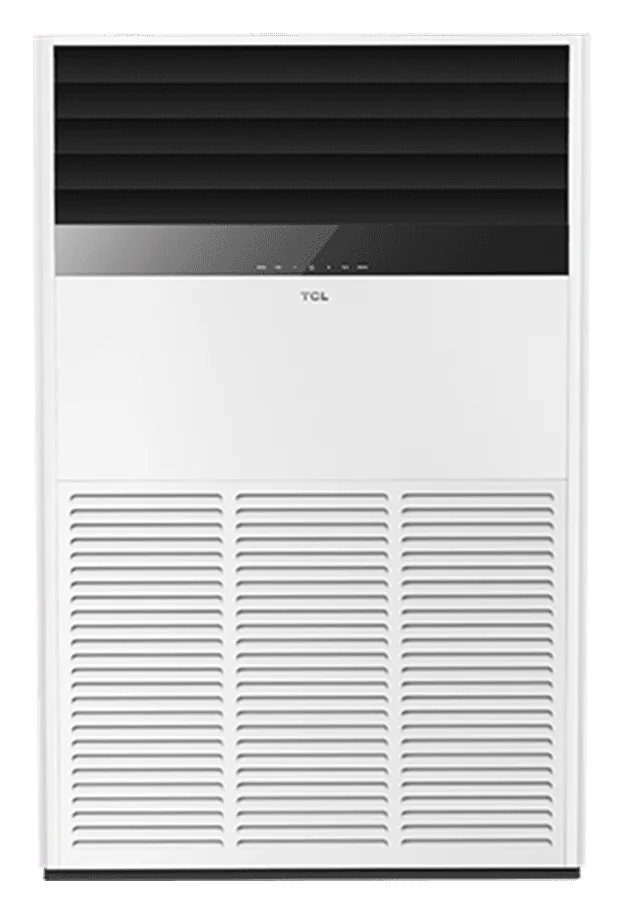

TCL Floor Standing 10 HP
A 10 HP floor-standing unit for halls, showrooms and warehouses: 4,700 m³/h airflow, an 18 m air throw and 120° wide-angle supply. A liquid-cooled control box keeps it running at 60 °C outdoors, with triple protection against moisture, water and dust.
Max. rated cooling ambient
60 °C
- 4,700
- m³/h airflow
- 18 m
- Air throw
- 60 °C
- Stable outdoor ambient
- 20%
- AI energy saving
Overview
Engineering highlights
Specification summary
- Product family
- Light Commercial
- Capacity range
- 10 HP
- Cooling operating range
- Up to 60 °C
Figures from TCL global product pages. Specifications vary by model and region — confirm against the submittal for your project. tcl.com
- 01
Liquid-cooled TEC control box
Liquid cooling keeps the electrics stable at 60 °C outdoor temperature; the box is sealed against moisture, water and dust and isolated from the evaporator.
- 02
Self-developed drive
DC inverter compressor and fan with TCL’s own 180° sinusoidal-wave VFD for smooth, efficient control.
- 03
Dust handled at both ends
A washable quick-release filter indoors, 58 °C deep cleaning, and reverse dust removal on the outdoor unit.
- 04
Install-ready
Long piping and high drop, pipe outlet in three directions, large touch panel, power-down memory and app control.
