Cooling-only VRF rated to 60 °C

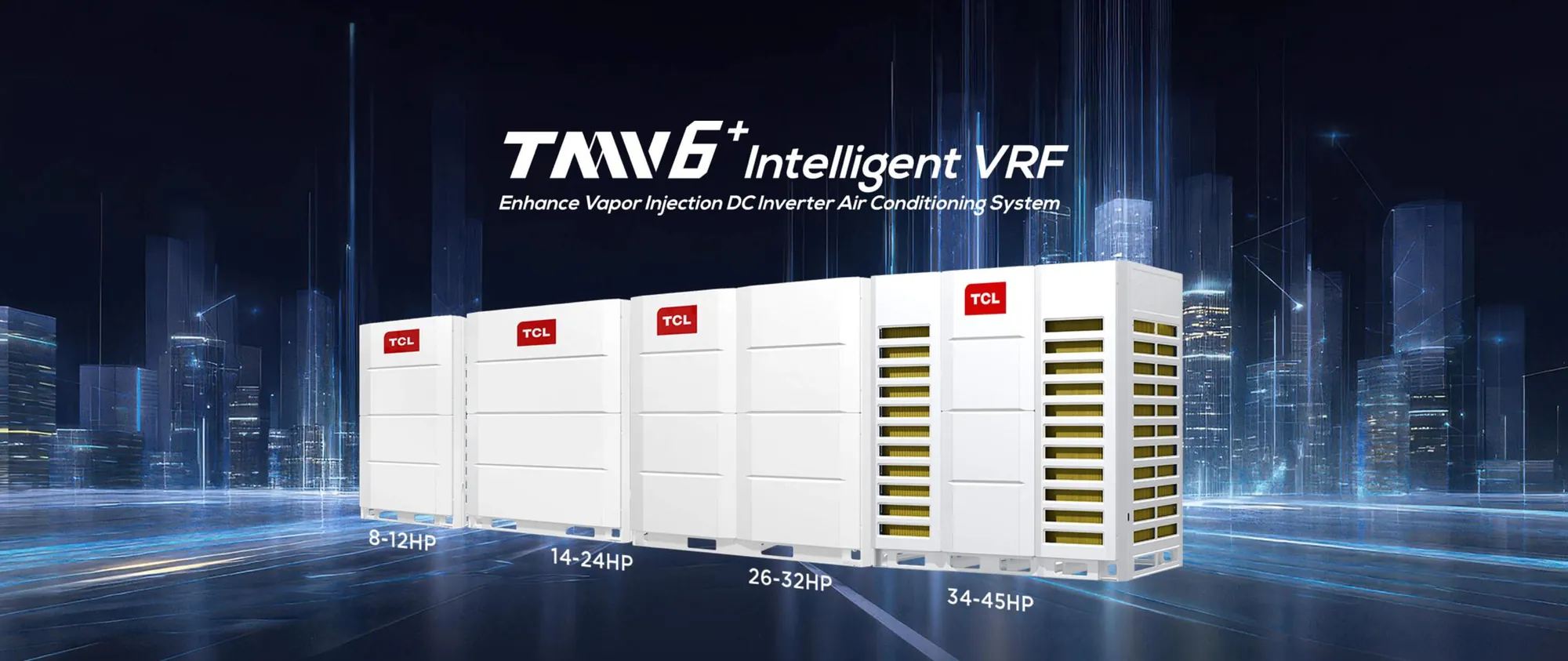

TCL TMV6+ ECOC
A cooling-only VRF engineered around Gulf conditions: stable operation from −15 °C up to 60 °C ambient, triple backup, automatic dust removal and total piping runs of up to 1,100 m. Modules from 8 to 36 HP.
Max. rated cooling ambient
60 °C
- 60 °C
- Max. cooling ambient
- 1,100 m
- Total piping length
- 3×
- Backup: compressor, fan, module
- 40–90%
- Generator mode, 6 levels
Overview
Engineering highlights
Specification summary
- Product family
- VRF Systems
- Capacity range
- 8–36 HP
- Cooling operating range
- −15 → 60 °C
Figures from TCL global product pages. Specifications vary by model and region — confirm against the submittal for your project. tcl.com
- 01
Wraparound refrigerant radiator
A refrigerant radiator wrapped around the inverter module carries heat away steadily, keeping the electronics reliable when the outdoor unit sits in direct sun.
- 02
Triple backup
Compressor backup on twin-compressor units, emergency fan-motor operation on dual-fan units and outdoor-module backup in multi-module systems.
- 03
Automatic dust removal
A built-in auto dust-removal function keeps the outdoor coil clear, protecting heat exchange and efficiency through sandstorm season.
- 04
Offline AI algorithm
Built-in AI continuously optimises temperature and efficiency and drives a self-adapting compressor — entirely offline, so performance and data privacy never depend on the internet.
- 05
Generator mode
Six capacity levels from 40% to 90% keep current draw within generator limits; the system returns to 100% automatically when grid power is restored.
- 06
1,100 m piping & BMS gateways
Long total piping and high drop give freedom on towers and spread-out sites; BMS gateways connect the system to building management.
Typical applications
Hotels & HospitalityQuiet guest rooms, keycard and BMS control, and lobbies where the ceiling is part of the design.
Malls & RetailHigh heat loads, long trading hours and rooftop plant that bakes in the sun all summer.
Offices & TowersLong vertical piping, zoned tenancy control and energy codes that reward every percentage point.
Halls & WarehousesLarge volumes, long air throws and plant that keeps running on generator power.
