Full-DC cooling & heating VRF with EVI

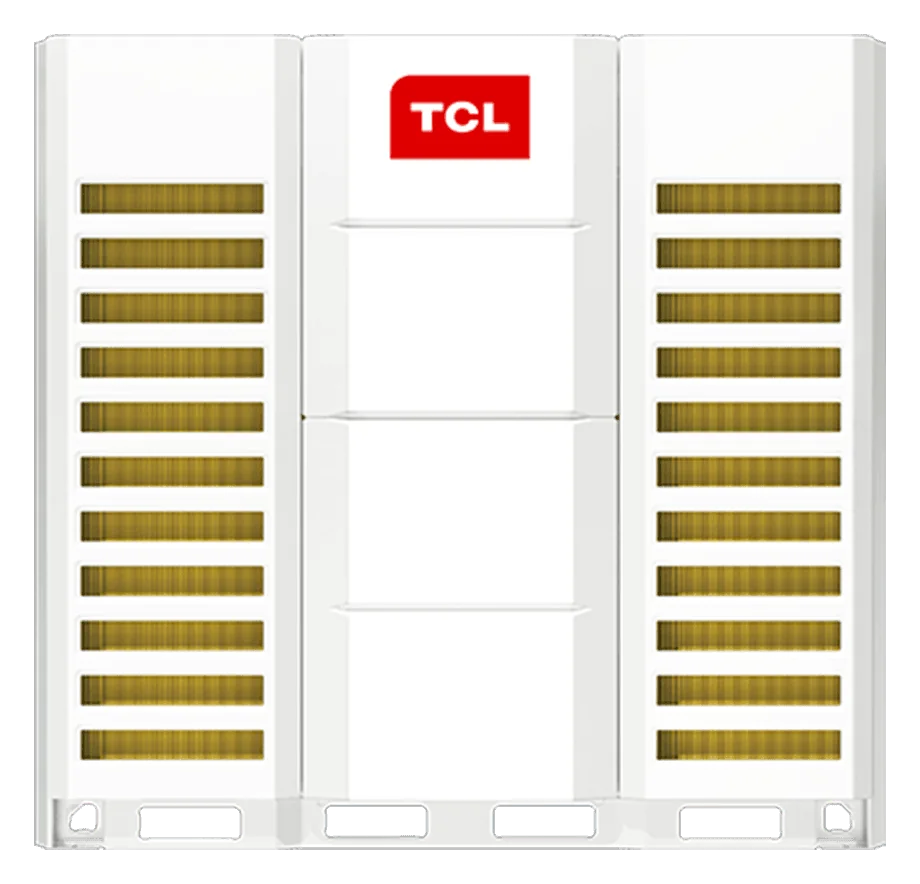

TCL TMV6+ Super
A full-DC inverter cooling and heating VRF from 8 to 32 HP per module. Enhanced vapour injection, refrigerant-cooled electronics and the 1,100 m piping design of the TMV6+ platform, with cooling from −15 °C to 56 °C and heating down to −30 °C.
Max. rated cooling ambient
56 °C
- 56 °C
- Max. cooling ambient
- −30 °C
- Min. heating ambient
- 1,100 m
- Total piping length
- EVI
- Vapour-injection compressor
Overview
Engineering highlights
Specification summary
- Product family
- VRF Systems
- Capacity range
- 8–32 HP
- Cooling operating range
- −15 → 56 °C
- Heating down to
- −30 °C
Figures from TCL global product pages. Specifications vary by model and region — confirm against the submittal for your project. tcl.com
- 01
Enhanced vapour injection
Injecting part of the gaseous refrigerant into the compression chamber raises capacity at the extremes and lowers discharge temperature.
- 02
Refrigerant + air heat dissipation
A refrigerant radiator and forced-air cooling protect the inverter module for stable, safe operation at high ambient.
- 03
Layered backup
Compressor, fan-motor and outdoor-module backup keep the building cooled while a fault is serviced.
- 04
Anti-adversity start
When strong wind spins the outdoor fan backwards, the controller stops it and restarts in the forward direction — avoiding damaging start-up current.
Typical applications
Hotels & HospitalityQuiet guest rooms, keycard and BMS control, and lobbies where the ceiling is part of the design.
Offices & TowersLong vertical piping, zoned tenancy control and energy codes that reward every percentage point.
Villas & CompoundsConcealed ducting, majlis comfort, clean façades and outdoor units that never give up in August.
