One family, every ceiling
TCL VRF Indoor Units

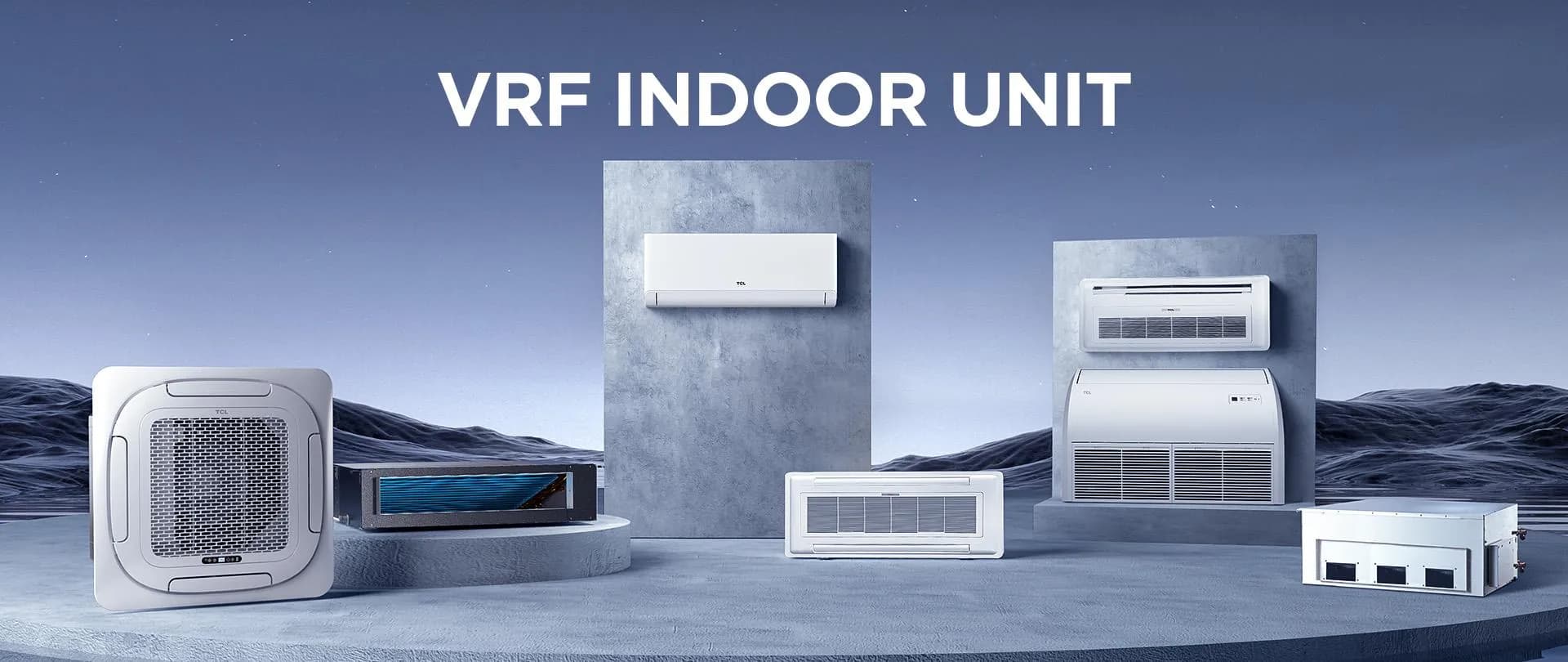

Matched indoor units for TCL VRF: 360° Q8 cassette, compact cassette, one- and two-way cassettes, low-ESP slim duct, free-ESP duct, high static pressure duct and wall-mounted units — so one system can serve lobbies, guest rooms and back-of-house alike.
- 8
- Indoor unit types
- 7
- Fan-speed levels
- 245 mm
- Slim duct body
- DC
- Inverter fan motors
Overview
Engineering highlights
Specification summary
- Product family
- VRF Systems
- Capacity range
- 8 indoor unit types
Figures from TCL global product pages. Specifications vary by model and region — confirm against the submittal for your project. tcl.com
- 01

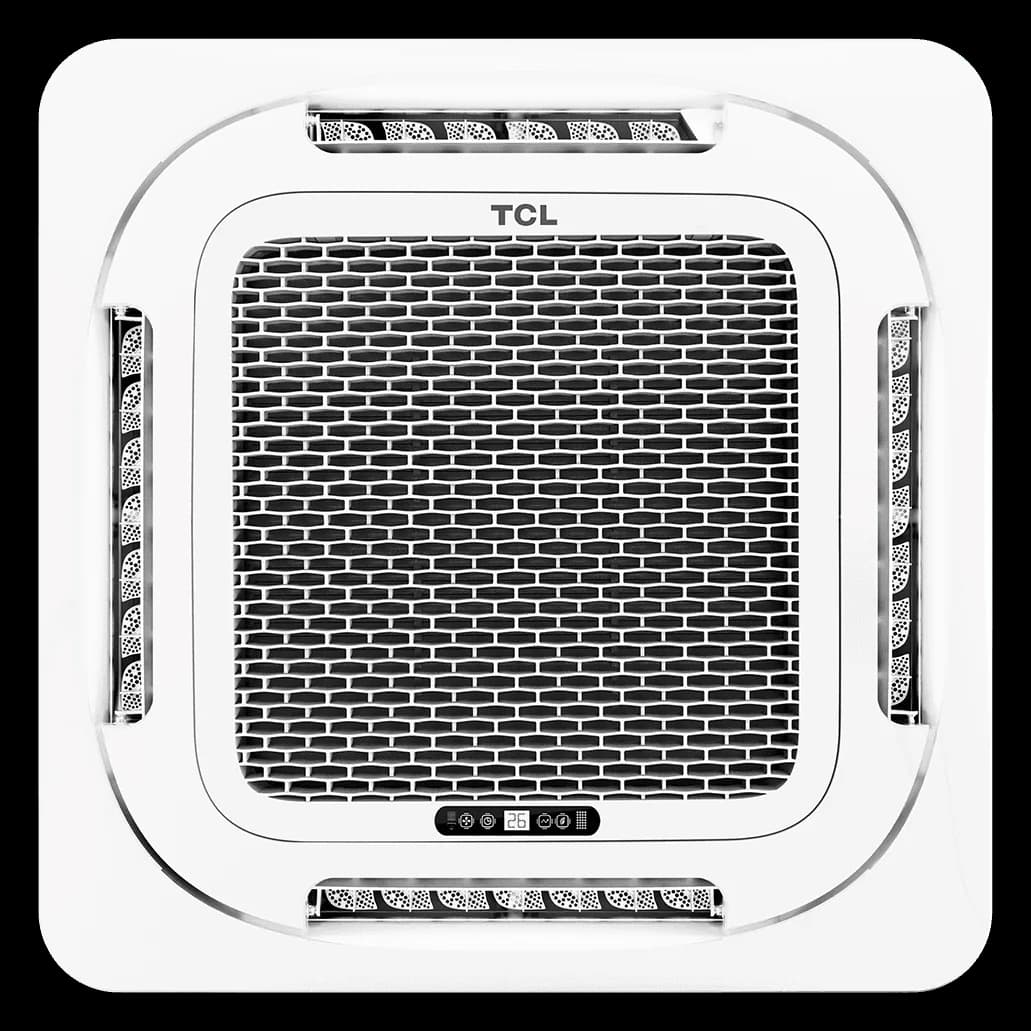

360° Q8 cassette
New panel design, large air volume, 7-level fan speed and 360° wide-angle supply, with a standard float switch for timely warning.
- 02
Slim & free-ESP ducts
Constant air volume, a 245 mm body, two air-return options, ceiling or floor concealment and fresh-air connection.
- 03
High static pressure duct
Ultra-high static pressure for long duct runs and varied outlet forms that disappear into the interior design.
- 04
Wall-mounted
Ultra-quiet, slim and easy to maintain, with a long-lasting filter design for guest rooms and offices.
Typical applications
Hotels & HospitalityQuiet guest rooms, keycard and BMS control, and lobbies where the ceiling is part of the design.
Malls & RetailHigh heat loads, long trading hours and rooftop plant that bakes in the sun all summer.
Offices & TowersLong vertical piping, zoned tenancy control and energy codes that reward every percentage point.
Villas & CompoundsConcealed ducting, majlis comfort, clean façades and outdoor units that never give up in August.
